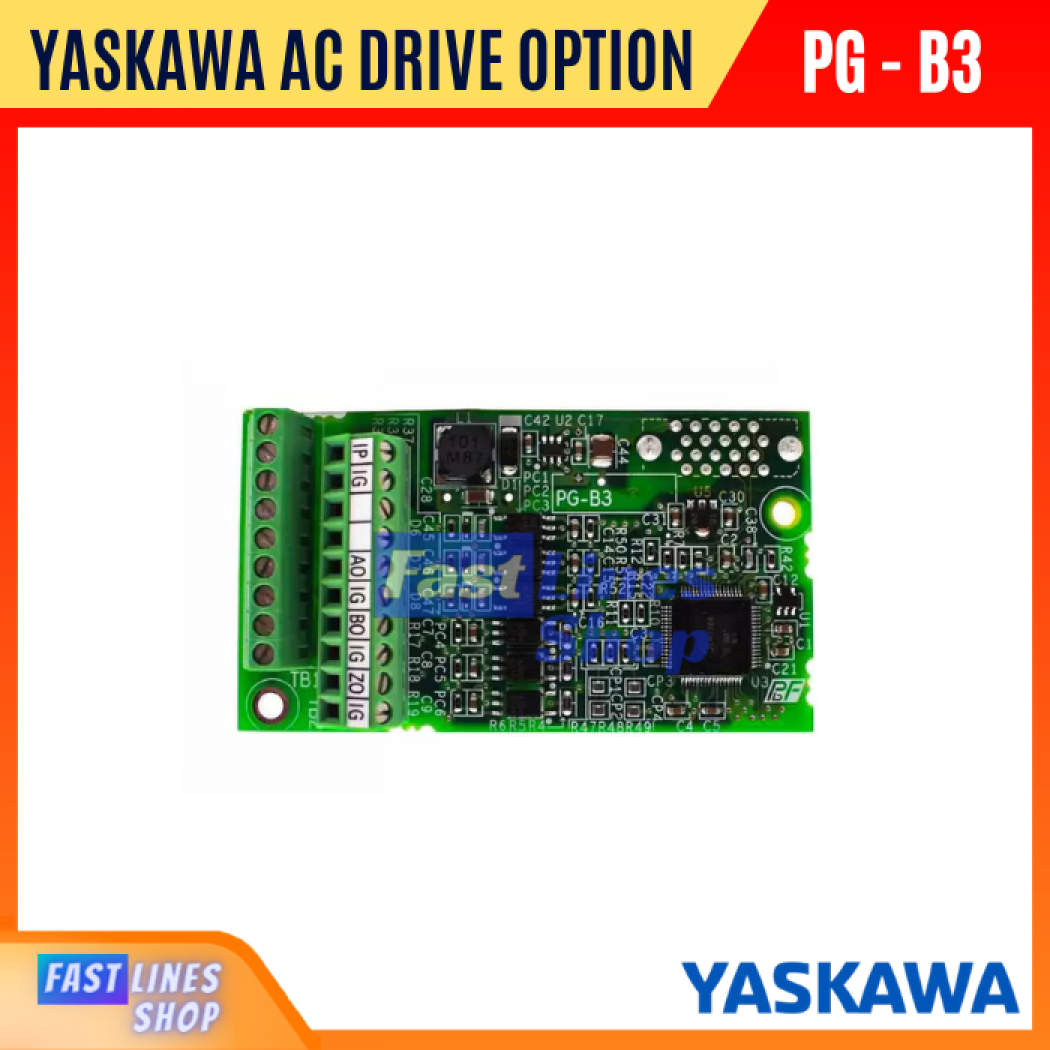

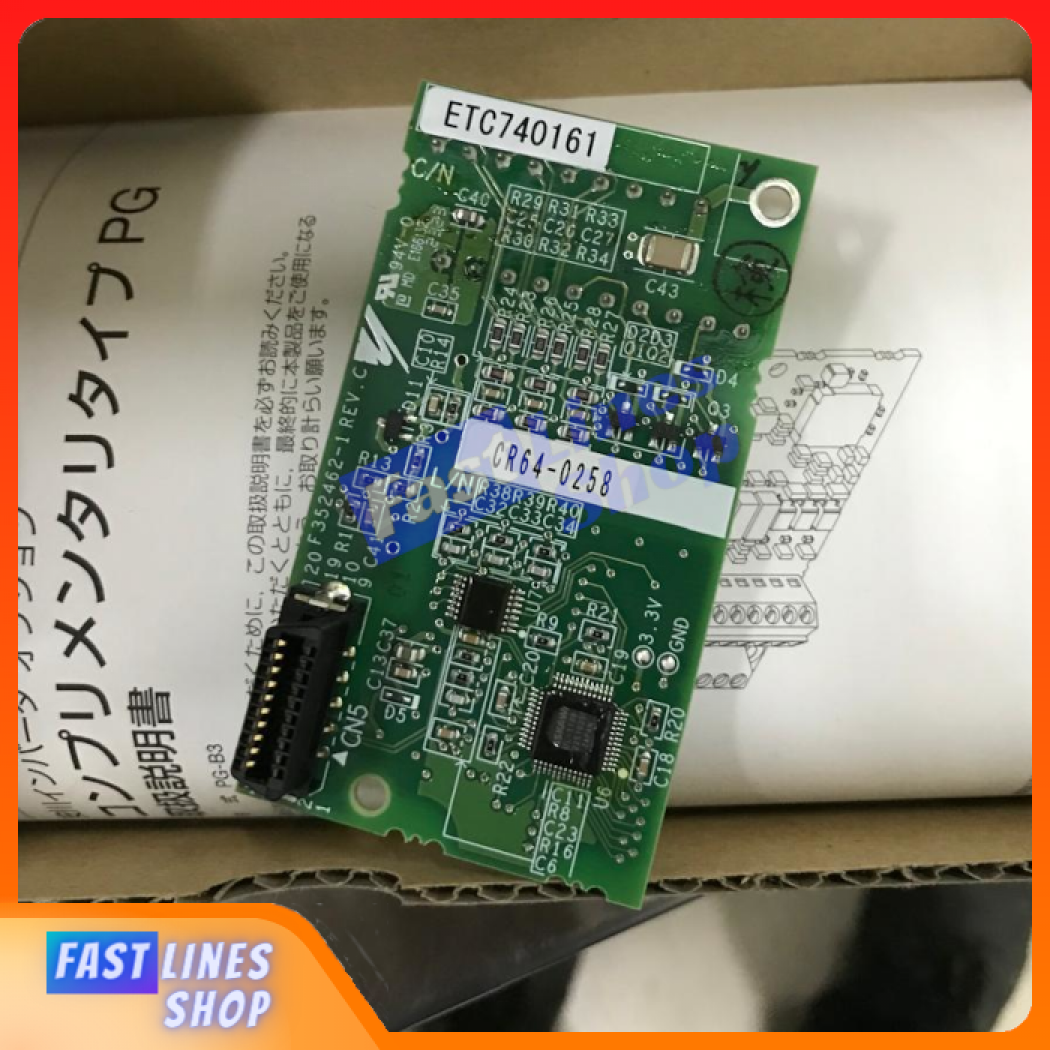

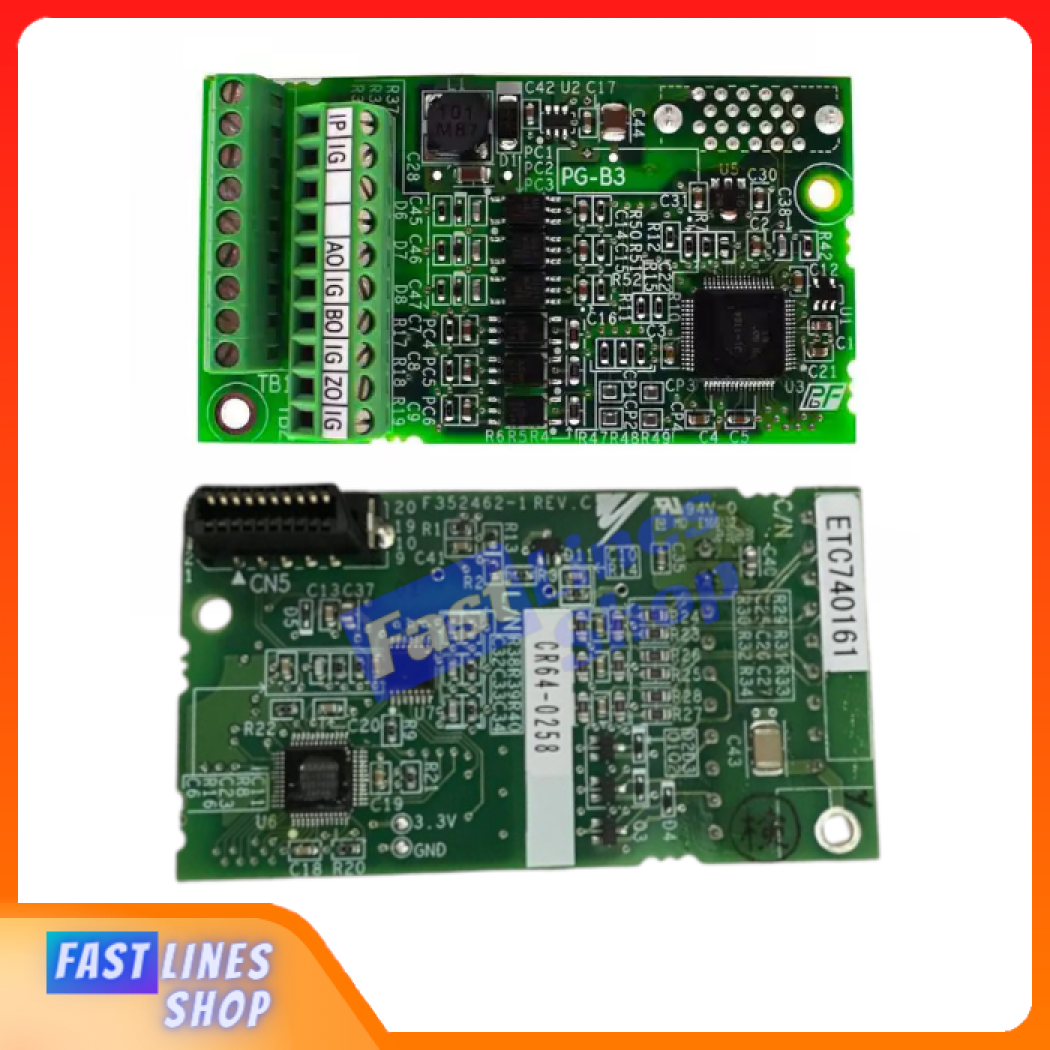

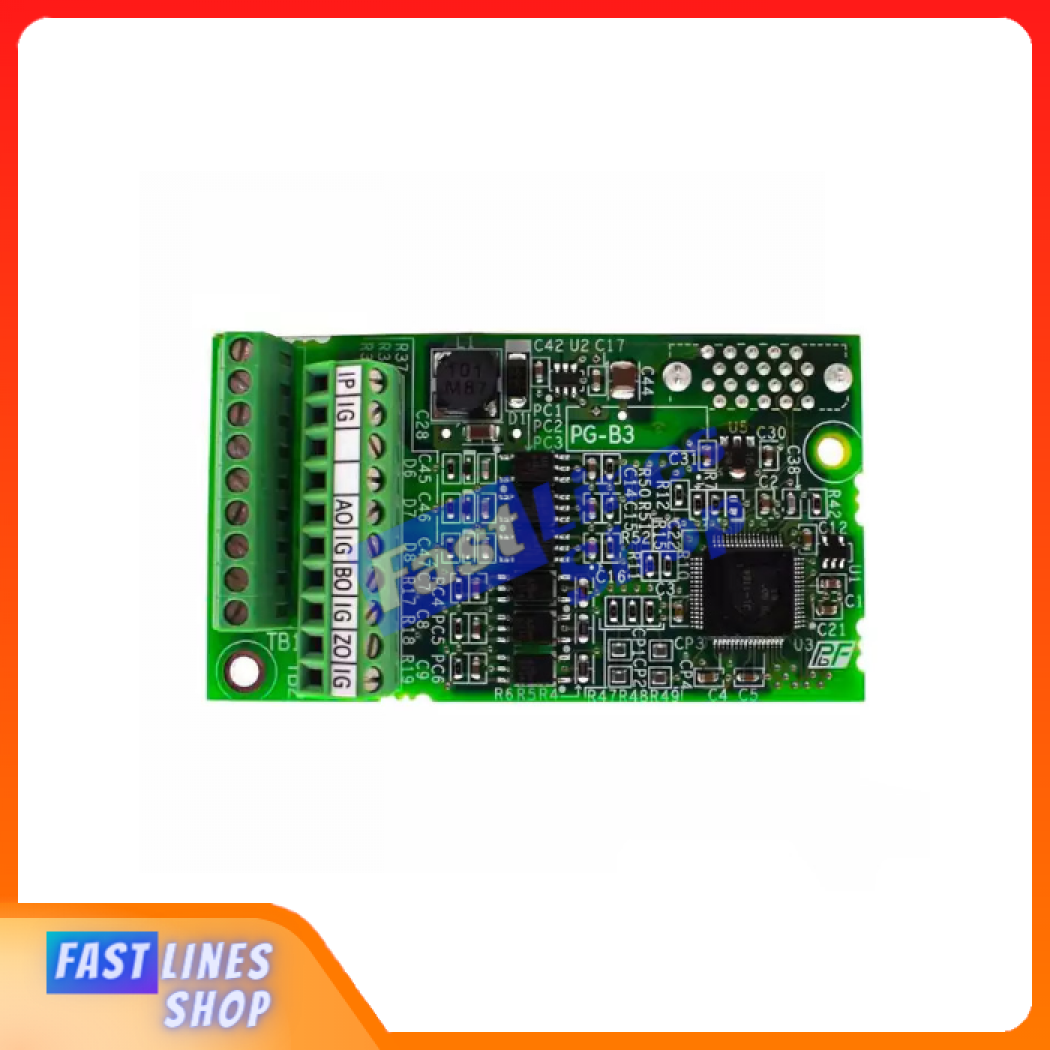

Yaskawa PG Card B3 Inverter Lift Drive

Spesificasion Product :
Suitable Encoders: Complementary, Open-collector Single track (A pulse), 2 track (A, B pulse) or 3 track (A, B, Z pulse).
Level: H level: 8 to 12 V, L level: 2.0 V maximum.
Line driver: None.
Output voltage for encoder power supply: 12 V 5%
Output Current: 200 mA Maximum
Maximum Cable length: Complementary is 100m or Open-collector is50m.
Monitor: for A, B, and Z pulse output is 24 V max, 30 mA Open-collector output.
Dimenion : W : 43mm, D : 75mm
